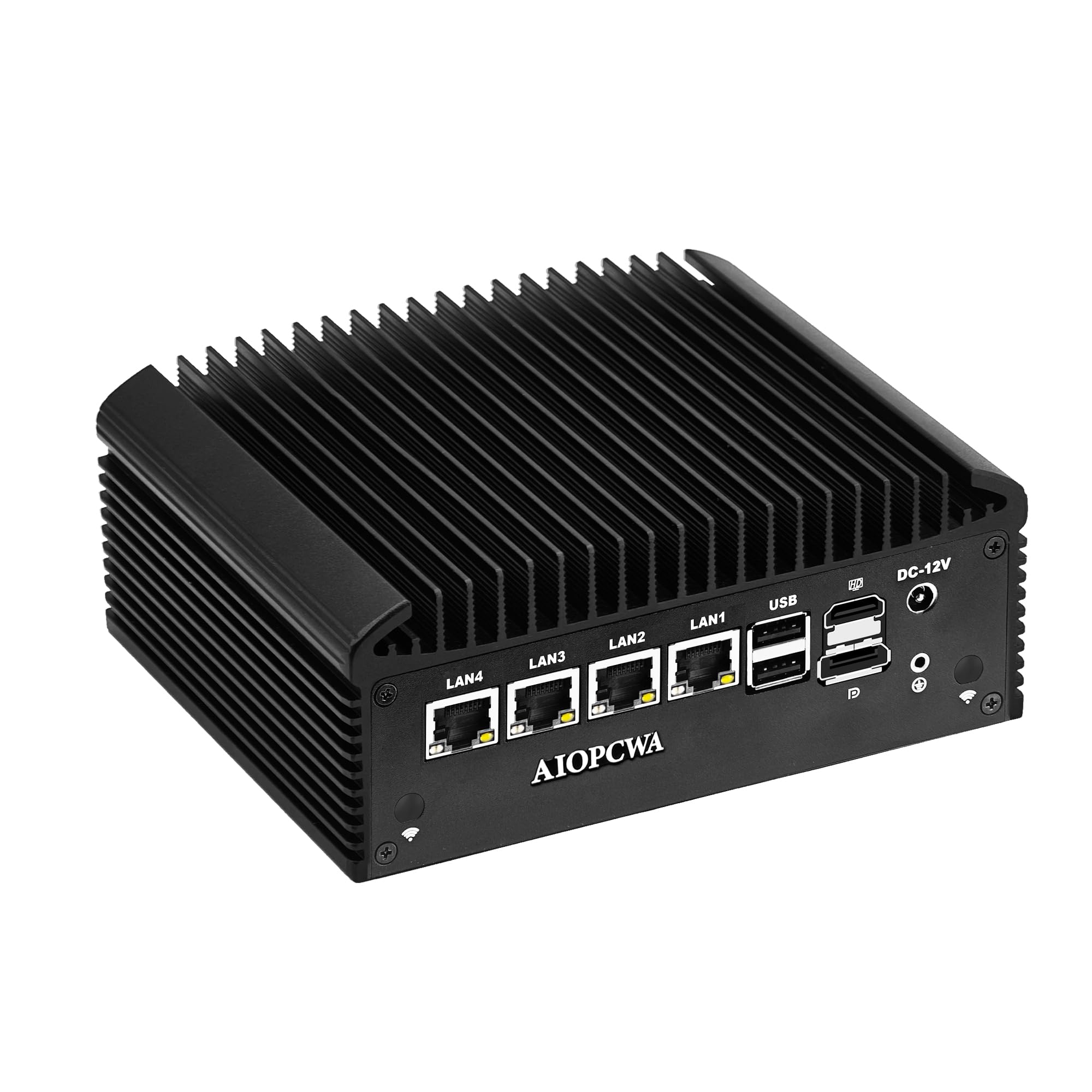

Fanless Mini PC N150 Firewall Appliance, 4 x i226-V 2.5GbE LAN, 2 x DB9 RS232 COM Industrial Mini Computer, OPNsense router Micro PC Barebone NO RAM/SSD/OS, HD+DP, 6 x USB

Marchio: AIOPCWA
Modello CPU: Mobile CPU
Velocità CPU: 3,6 GHz
Dimensioni cache: 6 MB
Descrizione scheda grafica: UHD Graphics
Nome modello: AI409-4L2COM
Componenti inclusi: 1 × AIOPCWA Mini PC, 1 × Power Cord, 1 × Power Adapter, 1 × Sata3.0 Cable, 1 × VESA Bracket, Screw
Caratteristica speciale: 4 LAN 2 COM
Produttore CPU: Intel
Tecnologia di connettività: Ethernet

- Efficient N150 Processor: Powered by Twin Lake N150 CPU (upgraded from Alder Lake N100), featuring 4 cores, 4 threads, up to 3.6GHz and 6MB cache, this 6W ultra-low TDP CPU delivers efficient performance for 24/7 use. Ideal for hardware firewall, soft router, home server, and industrial use cases. Supports AES-NI, Wake-on-LAN, Auto Power On, PXE Boot

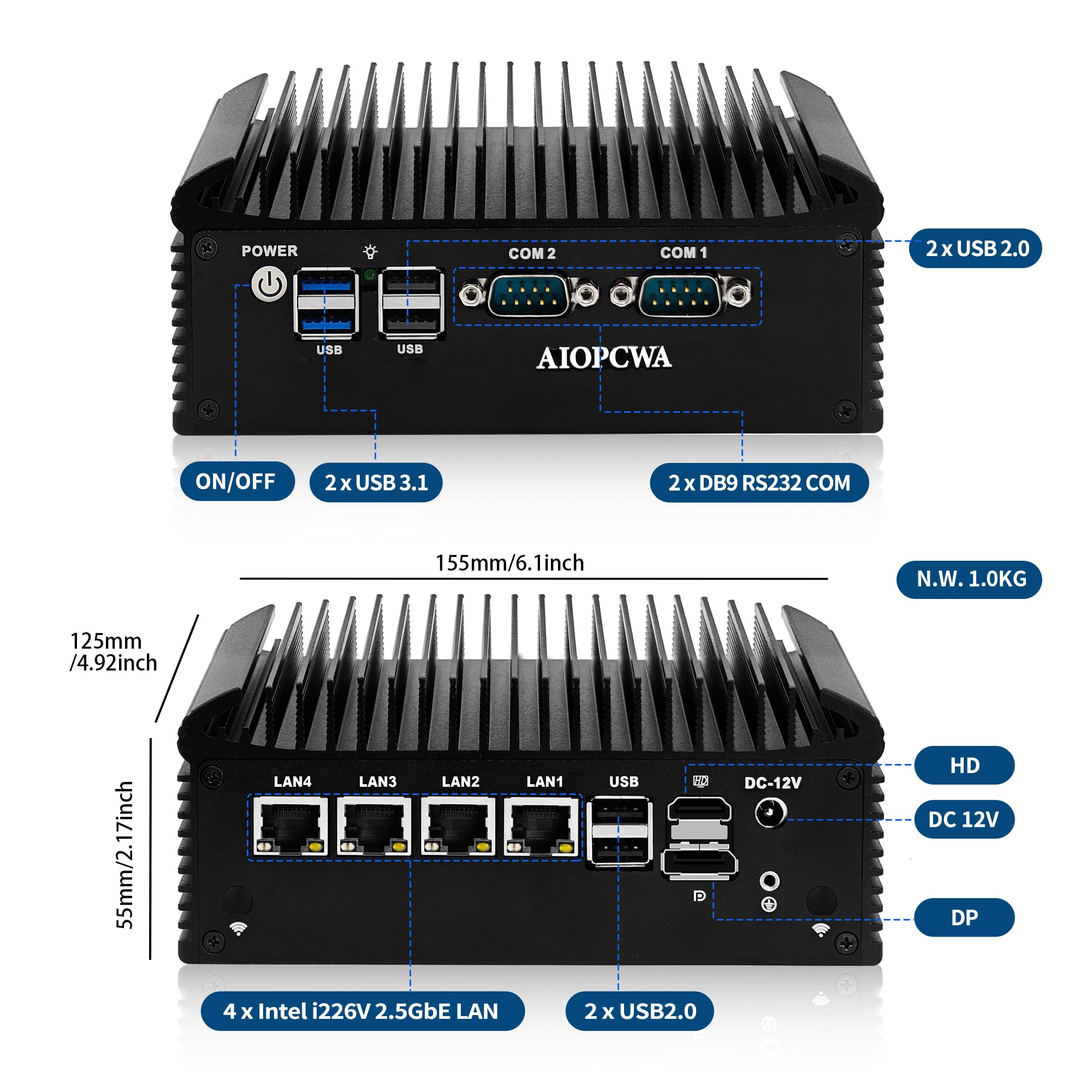

- Dual COM & 4×i226-V 2.5G LAN: Equipped with 4×i226-V 2.5GbE Ethernet ports, delivering high bandwidth and excellent network performance for stable, industrial-grade connectivity and continuous secure data transmission. 2×DB9 RS232 serial ports provide flexible industrial communication compatibility

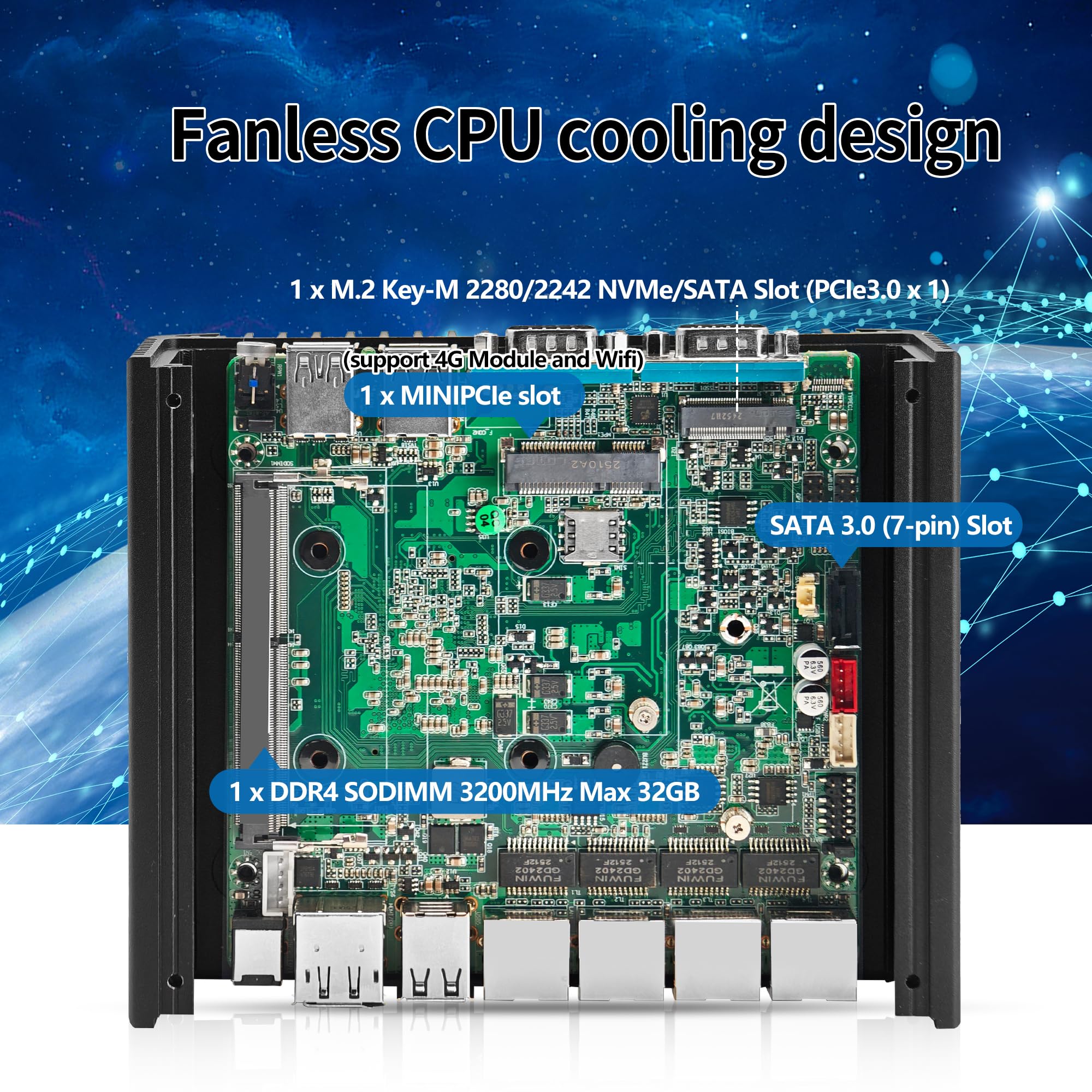

- Memory & Storage Expandability: Features 1×SO-DIMM DDR4 slot (3200MHz, up to 32GB) support for smooth performance. Storage options include 1× SATA3.0 + 1× M.2 Key-M (NVMe/SATA) for fast data access and system responsiveness. 1× Mini PCIe slot supporting 4G/Wi-Fi modules (Not Included), ideal for industrial and communication expansion needs
- Display Ports & Rich I/O Expansion: Supports dual display output via HDMI 2.1 and DP 1.4, delivering 4K@60Hz resolution with independent dual-screen display to boost productivity. Equipped with 2× USB 3.1 and 4× USB 2.0 ports for high-speed data transfer and flexible peripheral expansion
- Rugged Fanless Design: Full aluminum chassis with passive cooling ensures silent, stable operation while enhancing resistance to dust and moisture. Supports a wide -10°C to 60°C operating range and flexible AT/ATX power modes for various deployment needs. Built-in 2×6 Pin TPM header allows optional security module expansion (module not included)
